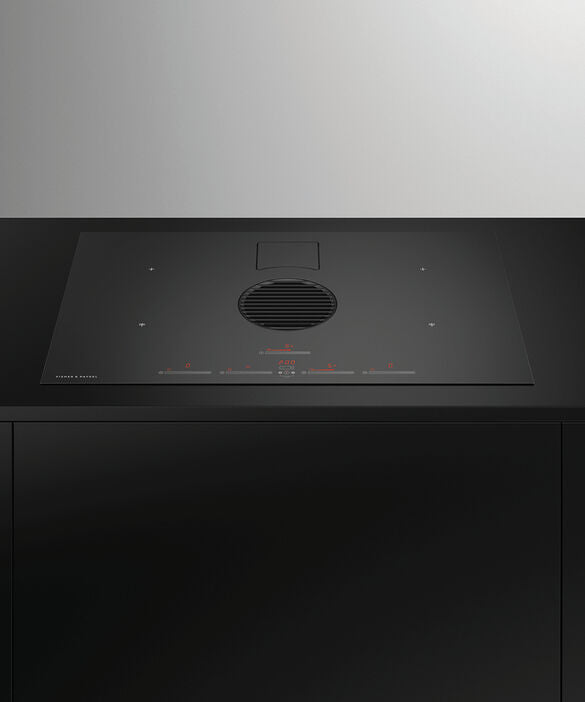

Fisher & Paykel CID834RDTB4 83cm Series 9 Minimal 4 Zone Induction Hob with Integrated Ventilation - Black
Fisher & Paykel
Fisher & Paykel CID834RDTB4 83cm Series 9 Minimal 4 Zone Induction Hob with Integrated Ventilation - Black
83cm Series 9 Minimal 4 Zone Induction Hob with Integrated Ventilation
- Seamless kitchen integration, without the need for overhead ventilation
- Four cooking zones, including simple pairing of two zones to create a SmartZone
- With nine fan speeds plus boost, select the perfect extraction rate for your cooking
- Minimal style, sleek black glass finish to suit any kitchen design
- Works effectively in the background by recirculating vented air
Features & Benefits
The feature images used on this page are examples to demonstrate the product benefits and may differ slightly from the actual product.

Seamless Integration
Offering true design freedom, this hob can be placed anywhere – eliminating the need for bulky overhead ventilation and helping to create a seamless flow between kitchen and living spaces. Installed raised or flush, it’s perfect for islands, or homes with high ceilings.

Elegant Design
The subtle black glass and durable matte black detailing blend elegance with durability. With premium styling, these hobs seamlessly blend with other appliances for a cohesive, considered kitchen design.

Precise Control
Fisher & Paykel induction hobs offer extremely accurate temperature control from very high to very low heats, so you can sear, sauté and temper like a pro. Touch&Slide controls react immediately when you adjust the temperature, so you can go from a boil to a simmer in seconds.

Effective Extraction
Designed for busy homes, the integrated ventilation works effectively and unobtrusively in the background by recirculating vented air. Featuring nine fan speeds, plus a boost function, for quickly removing odours and steam.

Safety Of Induction
Induction hobs only start heating your pot or pan once you’ve placed it on the surface and stop as soon as you remove it – so they are safer for everyone.

Ease Of Use
Designed for simple removal, the grease filter tray effectively captures spills, while the single glass cooking surface can be easily wiped clean. A flush ventilation grille allows pots to effortlessly slide across the hob surface.

Superior Efficiency
Less heat is wasted during induction cooking because only the cookware is heated, not the hob surface. This makes induction cooking more energy-efficient than electric or gas hobs.
Specifications
Accessories (sold separately)
Replacement recirculation filter | 50183 FR-DD |
---|
Cleaning
Dishwasher safe grease filter | |
---|---|
Flat easy clean glass surface | |
Flush grille | |
Odour filter | 3x Ceramic |
Consumption
Energy rating | A+ |
---|
Controls
Auto cut-off timer for each zone | |
---|---|
Minute timer | |
Soft-touch electronic controls | |
Touch and slide controls |
Downdraft performance
Air outlet size | 333mm W x 33 mm H (Toekick outlet) |
---|---|
Air speeds | 9 + boost |
Ducting direction | Front (ducting included), Side & Rear (ducting optional) |
Maximum air flow (Boost) | 660m³/hr |
Maximum air flow (Level 9) | 623m³/hr |
Maximum noise level (Boost) | 70dBA |
Maximum noise level (Level 9) | 69dBA |
Minimum air flow | 192m³/hr |
Minimum noise level | 38dBA |
Motor type | |
Recirculation |
Ducting Accessories (optional)
Duct 1m Connector 218x55 | 82394 D1-C-218-55 |
---|---|
Elbow 90° 222x218x55 | 82395 E90-222218-55 |
Performance
Gentle heat | |
---|---|
Heat settings | 9 |
Induction cooking technology | |
Pause function | |
PowerBoost | |
SmartZone |
Power requirements
Electrical connection | Terminal block |
---|---|
Maximum power | 7.4kW |
Supply frequency | 60Hz |
Product dimensions
Depth | 515mm |
---|---|
Height | 217mm |
Width | 830mm |
Safety
Keylock | |
---|---|
Pan detection system | |
Safety time out | |
Surface hot indicators |
Zone ratings
Left front | 2100W |
---|---|
Left front zone (PowerBoost set) | 3000W |
Left rear | 2100W |
Left rear zone (PowerBoost set) | 3000W |
Right front | 2100W |
Right front zone (PowerBoost set) | 3000W |
Right rear | 2100W |
Right rear zone (PowerBoost set) | 3000W |
SmartZone | 3700W |
Zones
Number of elements | 4 |
---|
