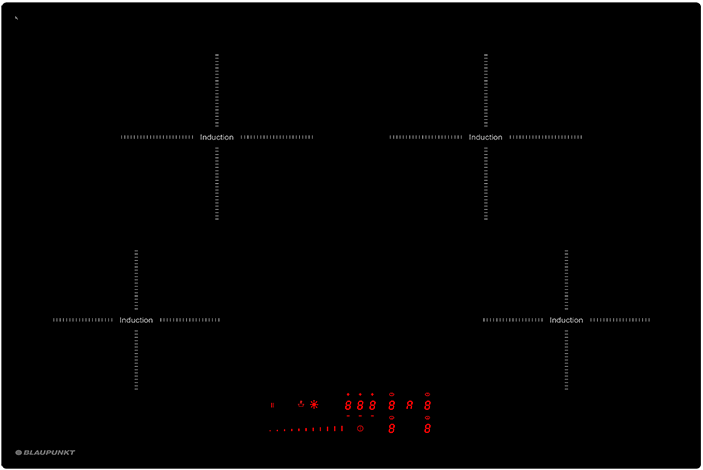

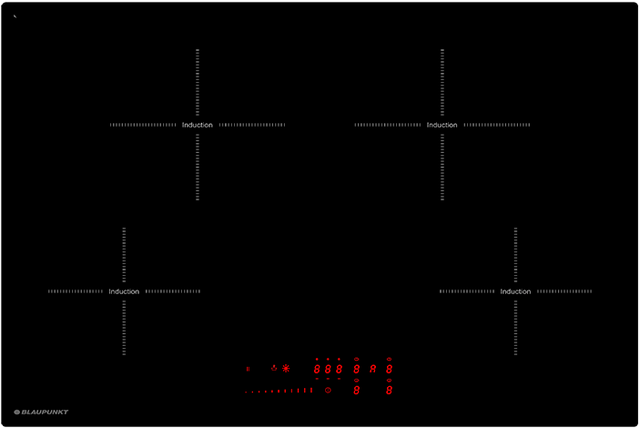

80cm width

Smart slider

An intuitive and very simple operating concept for all appliances: the Smart Slider makes every setting perfect.

Multi Control

The extractor fan hood and hob are intelligently linked. The extractor fan hood can be controlled separately using the hob control panel and
automatically adjusts the fan power to the heat generated. The intelligent light system can be used to individually regulate the colour temperature and intensity.

Induction

Immediately hot, immediately cold, and nothing burns on. The base of the pan is directly heated by the induction coil. The heat is only produced where it is needed. This means short heat-up times, more safety and much less energy consumption.

Touch Control

Precise, innovative and very user-friendly: gently touching the Touch Control buttons is enough to select the desired setting.

Boost function

No long heat-up times: the right cooking temperature is reached in seconds with the boost function.

Residual heat display

7-segment display

Specification

Output, consumption

• Voltage: 220 – 240 V
• Total connected load: 7.4 kW
• 4 induction cooking zones with booster:
• 2 cooking zones Ø 17.5 cm, 1.4 kW (2.1 kW)
• 2 cooking zones Ø 21.5 cm, 2.3 kW (3.0 kW)

Design, comfort

• Frameless
• Multi Control
• Smart Slider
• Touch Control
• Boost function for all induction cooking zones
• Electronic control in 10 power levels
• Digital display of cooking levels
• Residual heat display for each cooking zone
• Pot detection
• Child protection
• Timer – simultaneously adjustable for each cooking zone
• Countdown function
• Quick start function
• Recall function – Repeat the last settings
• Automatic safety switch-off
• Overflow detection
• Power management
• Flush-mounted installation possible
• Quick assembly system

Dimensions H × W × D

• Appliance dimensions: 5.2 × 78.0 × 52.0 cm
• Installation dimensions: 5.2 × 75.0 × 49.0 cm
