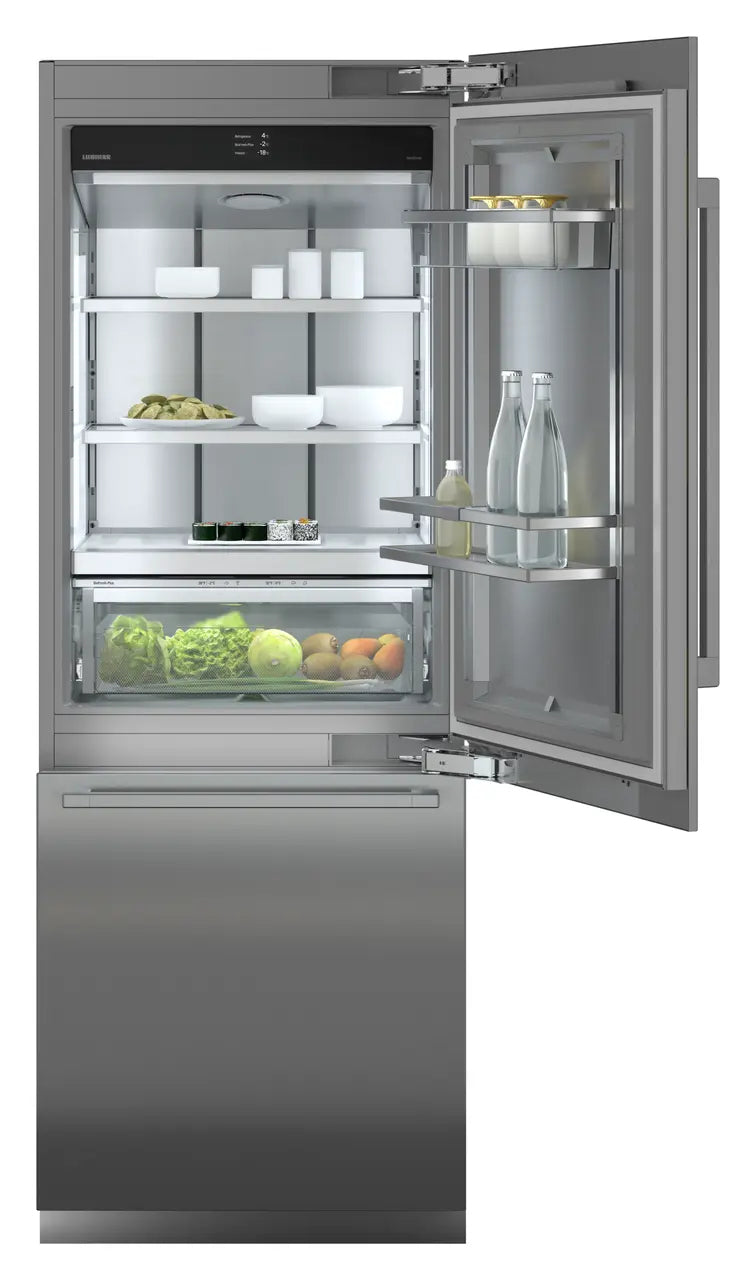

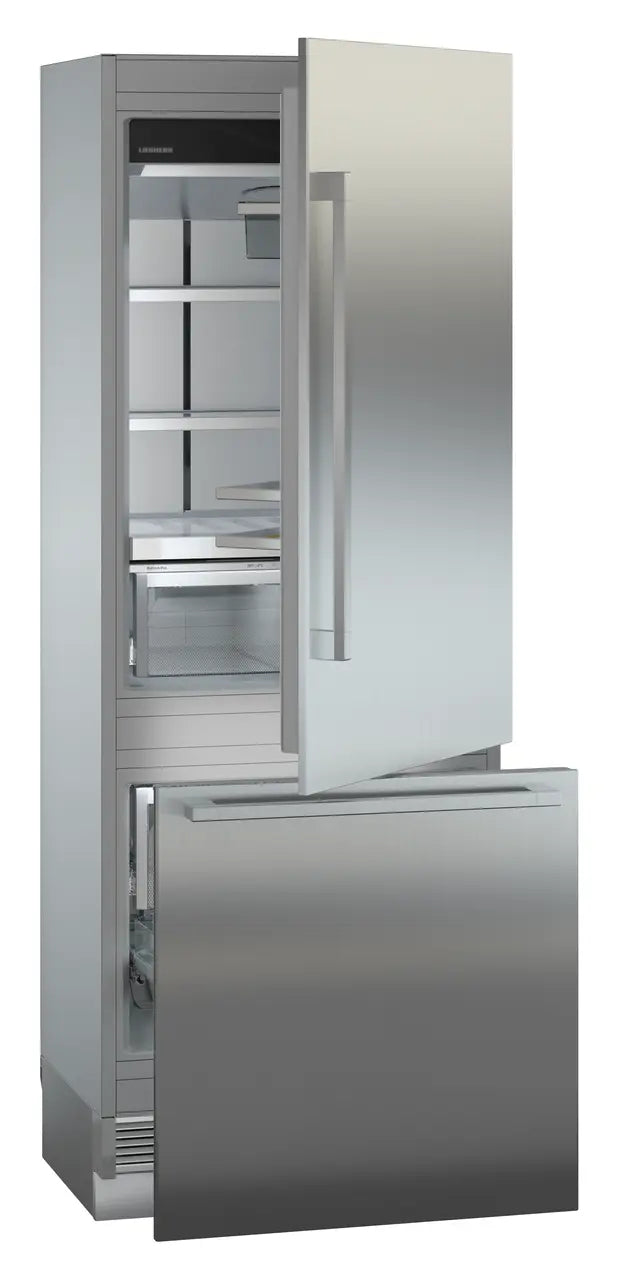

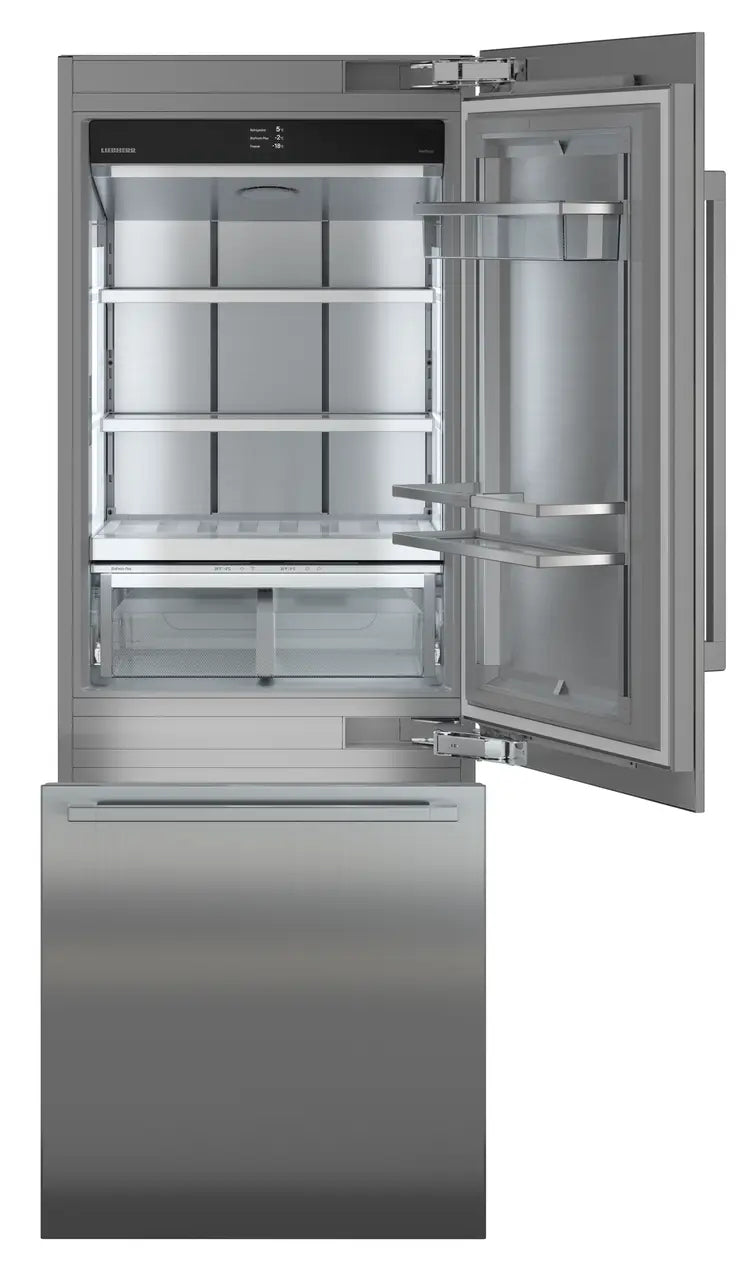

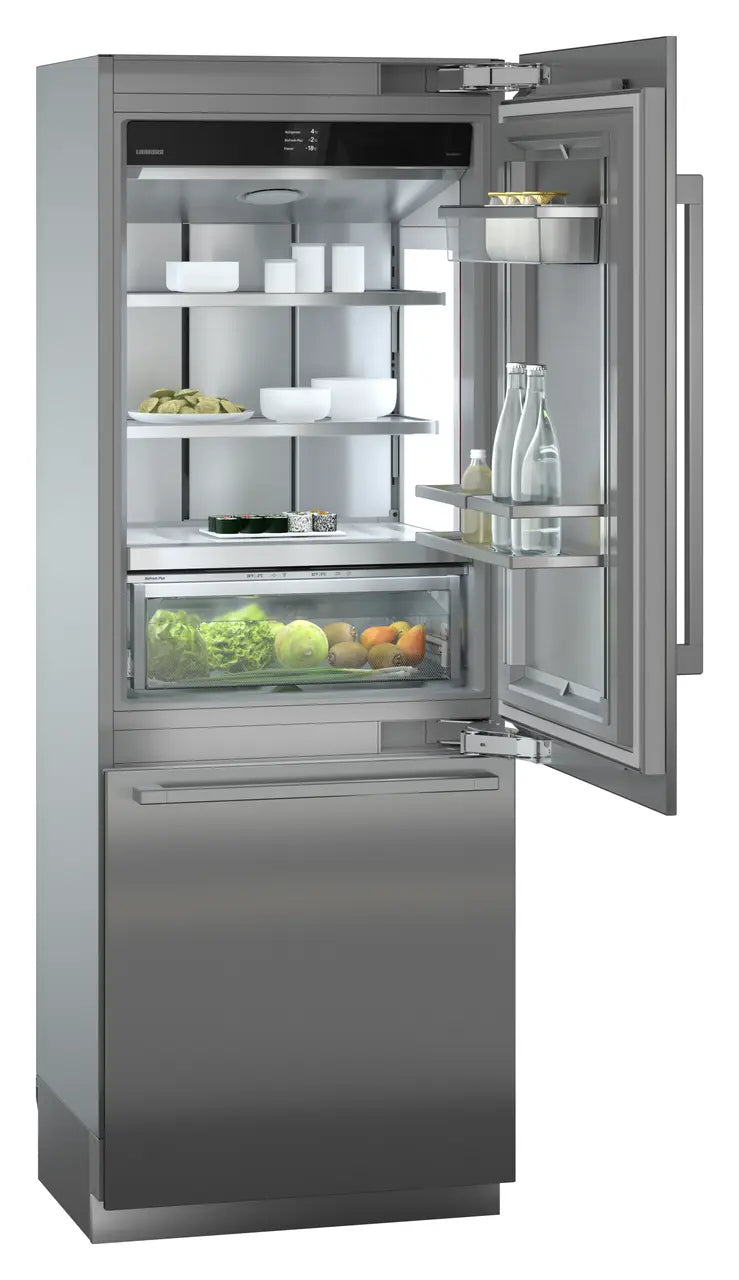

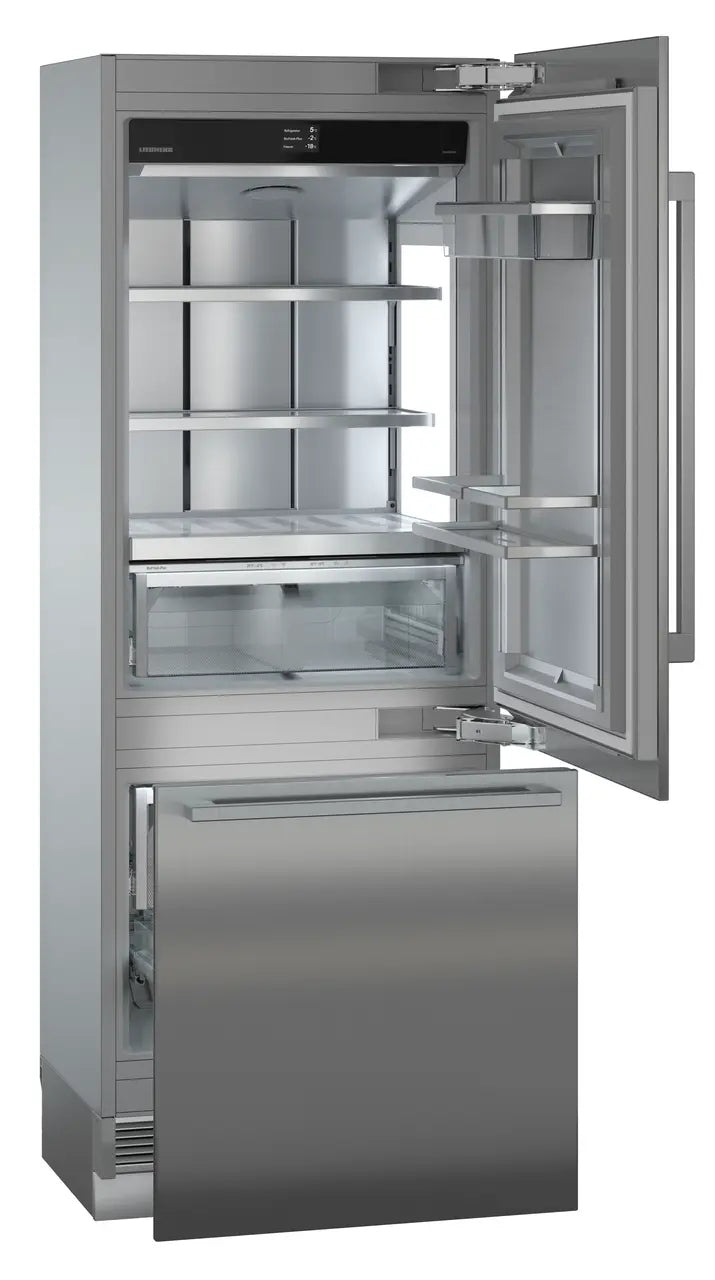

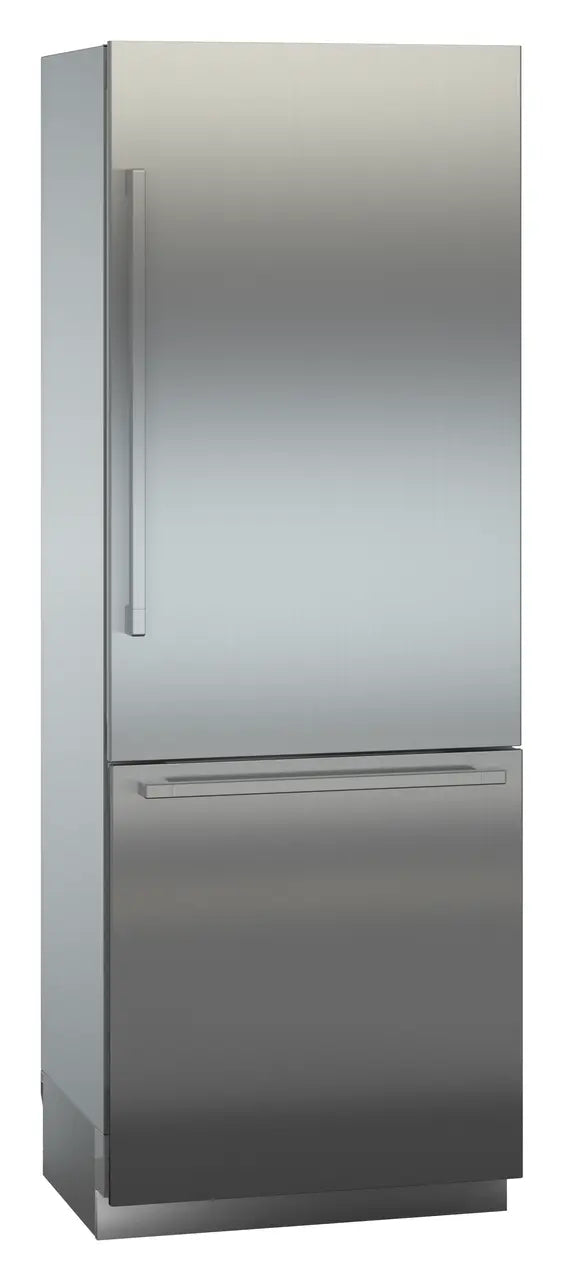

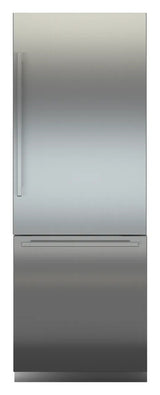

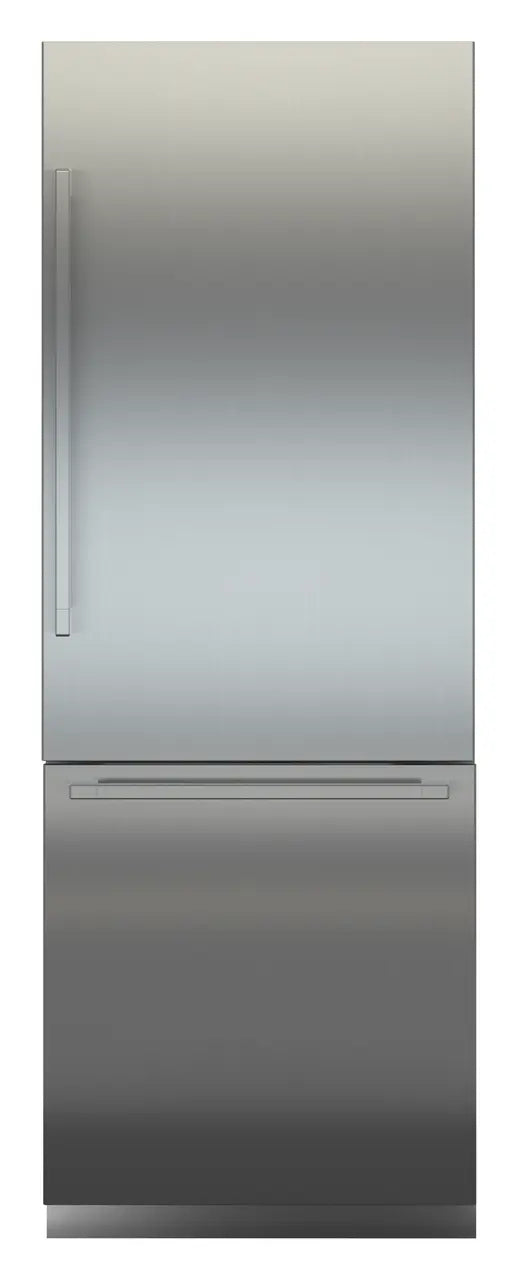

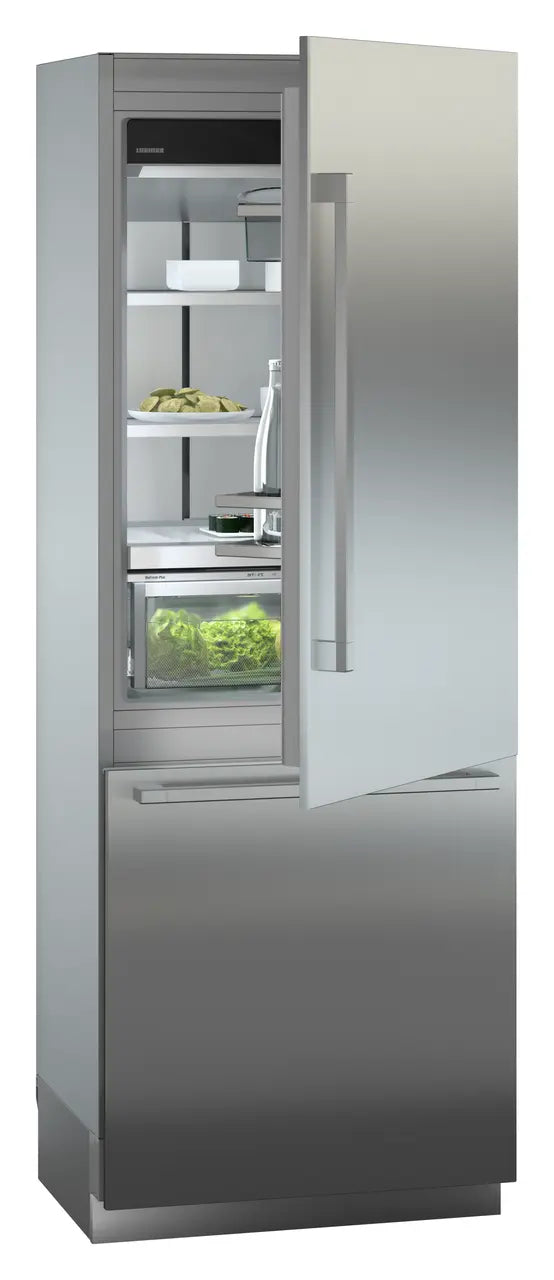

LIEBHERR ECBN 9471 - Integrated Fridge Freezer with BioFresh and NoFrost - Plumbed In Water and Ice Dispensers - Right Hand Hinge
Aperture dimensions height/width/depth - 213.4 / 76.2 / 63.5 cm
Total volume - 412 l
Noise level - 38 dB
Connectivity solution - integrated, removable
German Engineering
Our superior products offer premium quality, cutting edge design, and innovative features that best fit your lifestyle. The use of high quality materials, perfectly detailed finishes, and elite cooling components are combined with the latest production processes, resulting in an outstanding cooling product.
SmartDevice
Your Liebherr may well be standing in the kitchen – but if you want, it can also be connected to the Internet at any time. The SmartDeviceBox opens the door to all the Smart Home benefits. Simply plug it in, switch it on and connect your Liebherr to the network via WiFi. The Monolith is supplied with a SmartDeviceBox.

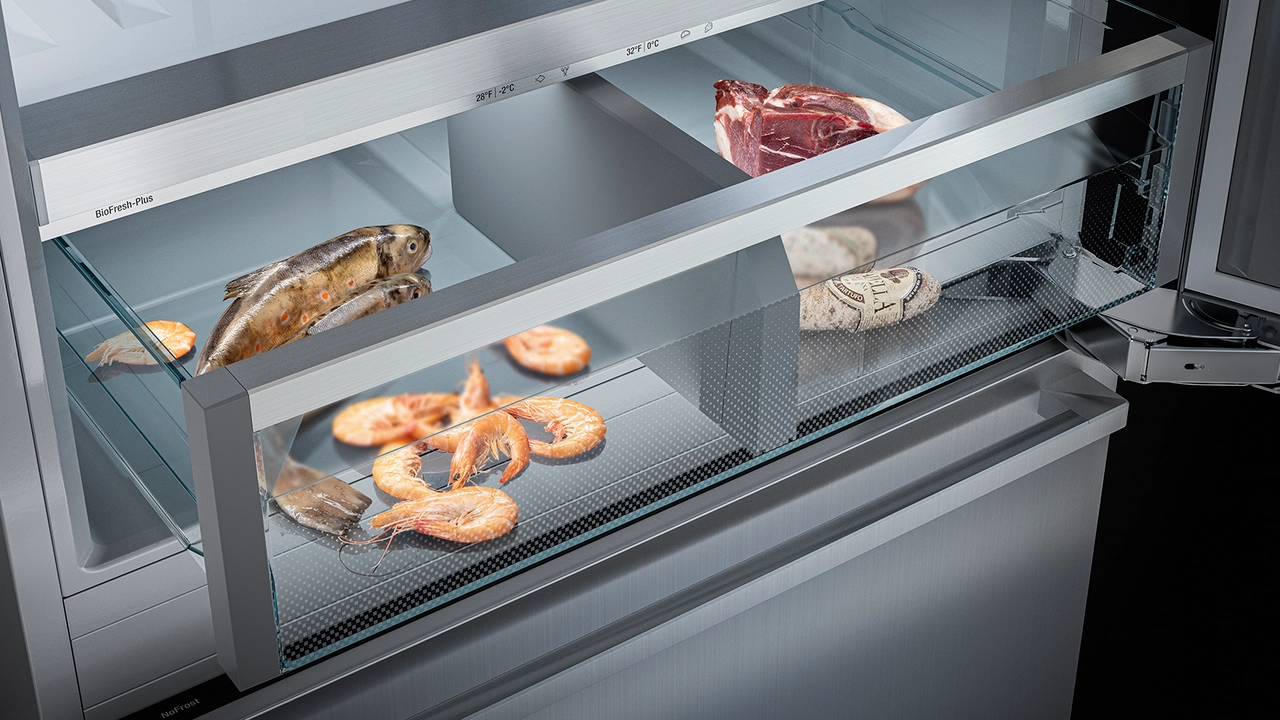

BioFresh-Plus
The BioFresh Plus Safe guarantees you a perfect storage climate and extra-long freshness of fruit and vegetables, meat and dairy products as well as fish and seafood – all in just one compartment. Depending on the food, the Meat & Dairy safe can be divided into various temperature zones from just over 0 °C (32 °F) to an icy -2 °C (28 °F).

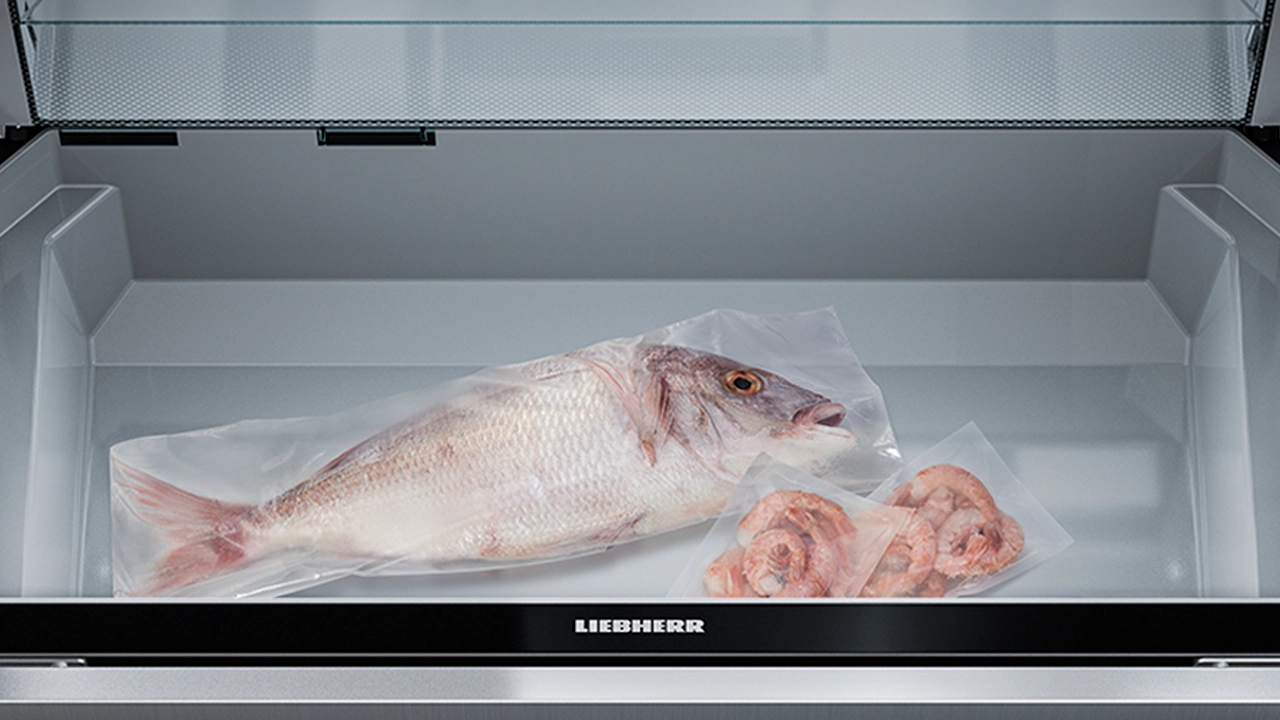

NoFrost
The Monolith also impresses with maximum comfort at sub-zero temperatures. Its NoFrost technology always keeps the freezer compartment free of ice and prevents food from becoming covered in frost. It makes defrosting a thing of the past.

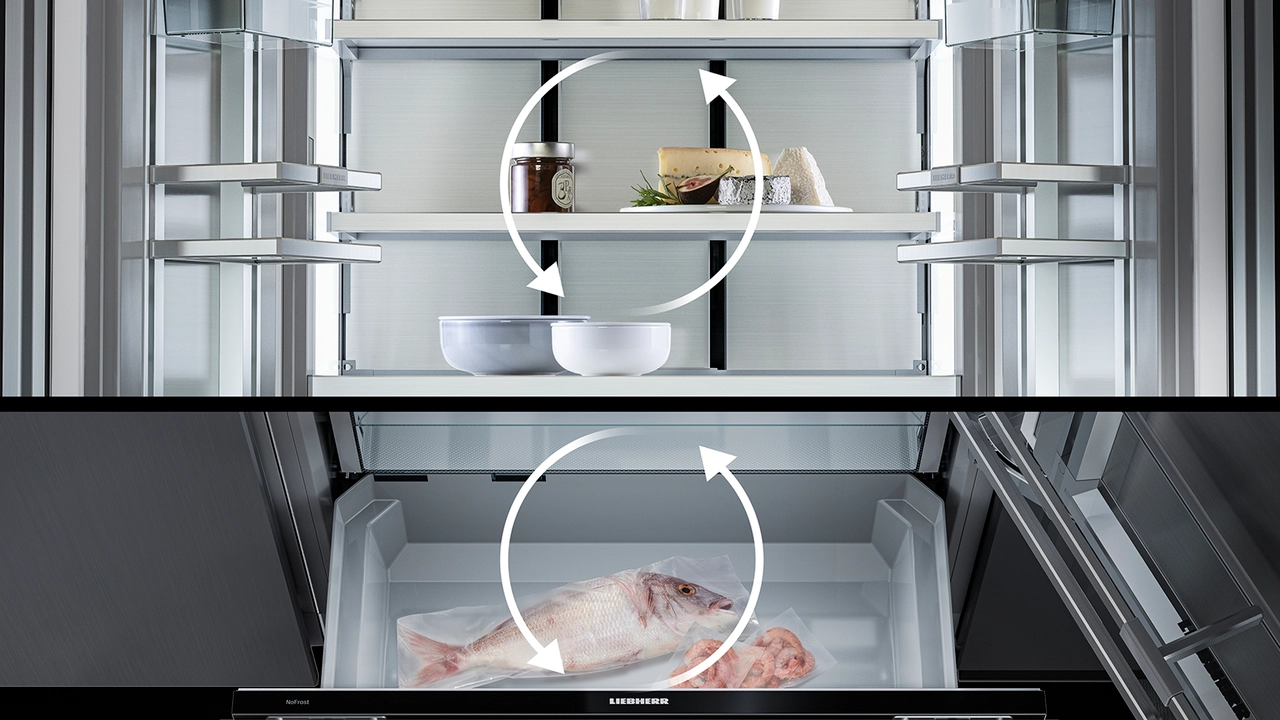

DuoCooling
DuoCooling technology uses two completely separate refrigeration circuits to prevent air from being exchanged between the fridge and freezer compartments. This protects food in the refrigerator compartment from dry air from the freezer compartment. Also, odours do not mingle and the foods retain their own aroma. There is no air exchange between the fridge and freezer compartments, odour transfer is prevented and stored food does not dry out.
SuperSilent
Shhh – listen carefully. Your Liebherr is so quiet that you have to strain your ears to hear it. How is this achieved? All refrigeration components such as compressors, valves, fans and evaporators are optimised and perfectly adapted to one another. This means you only hear what you want to hear in your kitchen.
InfinitySwipe
InfinityLight
SuperCool
SuperFrost
InfinitySpring

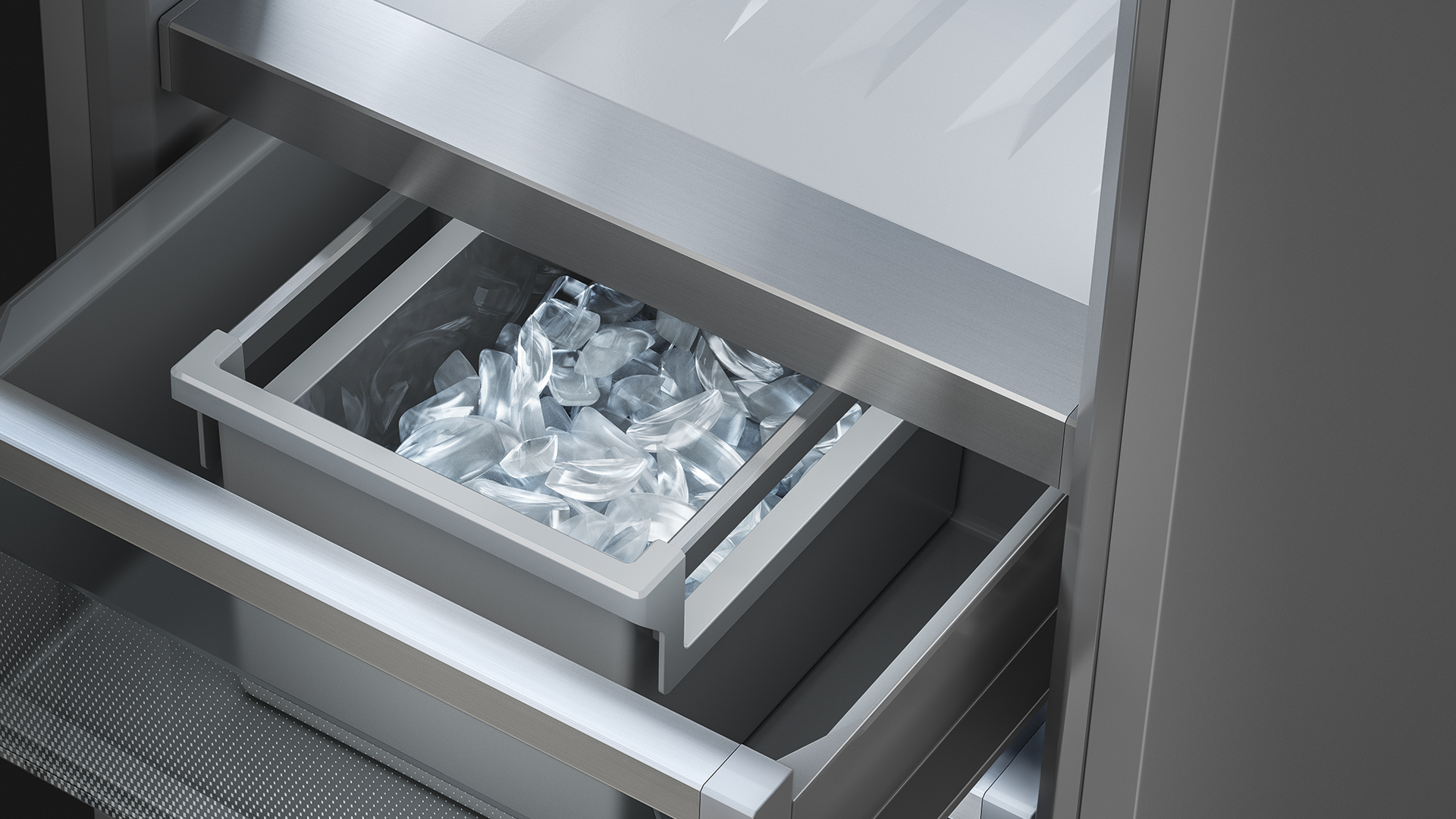

IceMaker
Specification
|
Energy Label
|
— |
|
Energy efficiency class
|
E |
|
Energy consumption per year
|
307 kWh/a |
|
Climate class
|
SN-T |
|
Noise level
|
38 dB |
|
Refrigerant
|
R 600a |
|
Voltage
|
220-240 V ~ |
|
Frequency
|
50 Hz |
|
Connection rating
|
3.0 A 236.2 W |
|
Malfunction: Warning signal
|
optical and acoustical |
|
Control
|
3,5"-LCD-Farbdisplay |
|
Control unit
|
Touch & Swipe |
|
Number of regulated refrigeration circuits
|
2 |
|
Child proofing
|
✔ |
|
Temperature display
|
Fridge, freezing compartment& BioFresh safe |
|
Connectivity solution
|
integrated, removable |
|
Adjustable temperature range
|
+2 °C to +7 °C |
|
Number of BioFresh safes
|
0 |
|
Interior light of BioFresh safe
|
Down light |
|
extendible on telescopic rails
|
✔ |
|
Defrosting method
|
automatic |
|
Forced air cooling
|
✔ |
|
FreshAir filter
|
in the fan housing |
|
SoftSystem
|
✔ |
|
Illumination cooling compartment
|
Illuminated side wall |
|
Number of storage shelves, refrigerator compartment
|
3 |
|
Of which separable
|
0 |
|
of which height-adjustable
|
2 |
|
Bottle rack
|
1 |
|
Number of can racks
|
0 |
|
Type of door rack Cooling compartment
|
Gallon rack |
|
Adjustable temperature range
|
-14 °C to -27 °C |
|
Defrosting method
|
automatic |
|
Storage time in case of fault according to GS *
|
17 h |
|
Freezing capacity in 24 hours according to GS *
|
11 kg / 24h |
|
No. of drawers in freezer compartment
|
2 |
|
Interior light, freezer compartment
|
LED ceiling lighting |
|
Water inlet
|
Fixed water connection |
|
MaxIce function
|
3 kg / 24h |
|
Ice cube production
|
1.4 kg / 24h |
|
Ice cube storage
|
3 kg |
|
Star-rating
|
4 |
|
Material inner door rack
|
Glass |
|
Storage shelf material, refrigerator compartment
|
Glass |
|
Material of adjustable shelves in the freezer compartment
|
— |
|
Door material
|
Steel |
|
Type of installation
|
Designed for integrated use |
|
Door assembly
|
Fixed door |
|
Max. kitchen unit door weight
|
22/13 |
|
Door hinges
|
Right |
|
Door hinge replacement
|
Only possible via customer service |
|
Door opening angle
|
115° |
|
Height-adjustable feet
|
0 |
|
Levelling bars
|
— |
|
Number of levelling bars
|
0 |
|
Ventilation
|
Base ventilation |
|
Connector cable (length)
|
2,500 mm |
|
Aperture dimensions height/width/depth
|
213.4 / 76.2 / 63.5 cm |
|
Exterior dimensions: height/width/depth (with packaging)
|
2,270.0 / 820.0 / 765.0 mm |
|
Exterior dimensions: height/width/depth
|
212.6 / 75.4 / 61 cm |
|
Weight (without packaging)
|
179 kg |
|
Weight (with packaging)
|
200 kg |
|
Total volume **
|
412 l |
|
Volume, refrigerator compartments
|
267 l |
|
of which BioFresh
|
70.1 l |
|
Volume, freezer compartments
|
146 l |
|
Of which 4-star compartment
|
145.7 l |
